Low thermal resistance CPU flexible carbon thermal conductive carbon graphite sheet

1. About Dasen                                                    &nbs

Featured Products

1. About Dasen

DASEN is a high-tech enterprise engaged in R&D, production and sales of pyrolytic graphite, graphene film, vapor chamber, roll bond plate evaporator, silicone thermal pad, die-cutting, graphene thermal gel, graphite mold, graphite crucible, ceramic filtration membrane.



Services in telecommunications, industrial consumer electronics and medical, new energy vehicles, machinery, environmental engineering.

*   Used in soft circuit board, backlight module, touch panel, mechanical hardware, finished product assembly and environmental protection engineering industry

*   Four factories:  Jiangsu, Jiangxi, Anhui and Shandong.

Certificates: ISO9001,IATF16949,ISO14001,UL…



2. Synthetic graphite sheet

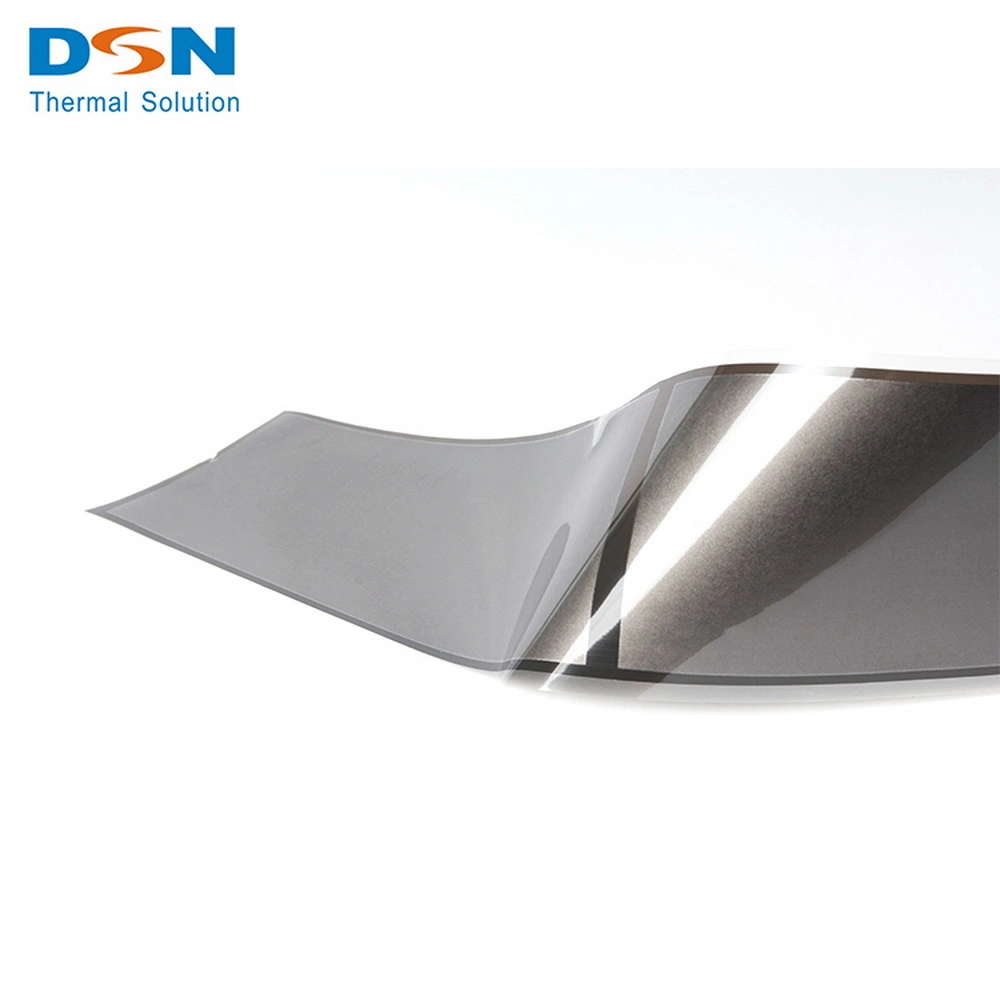

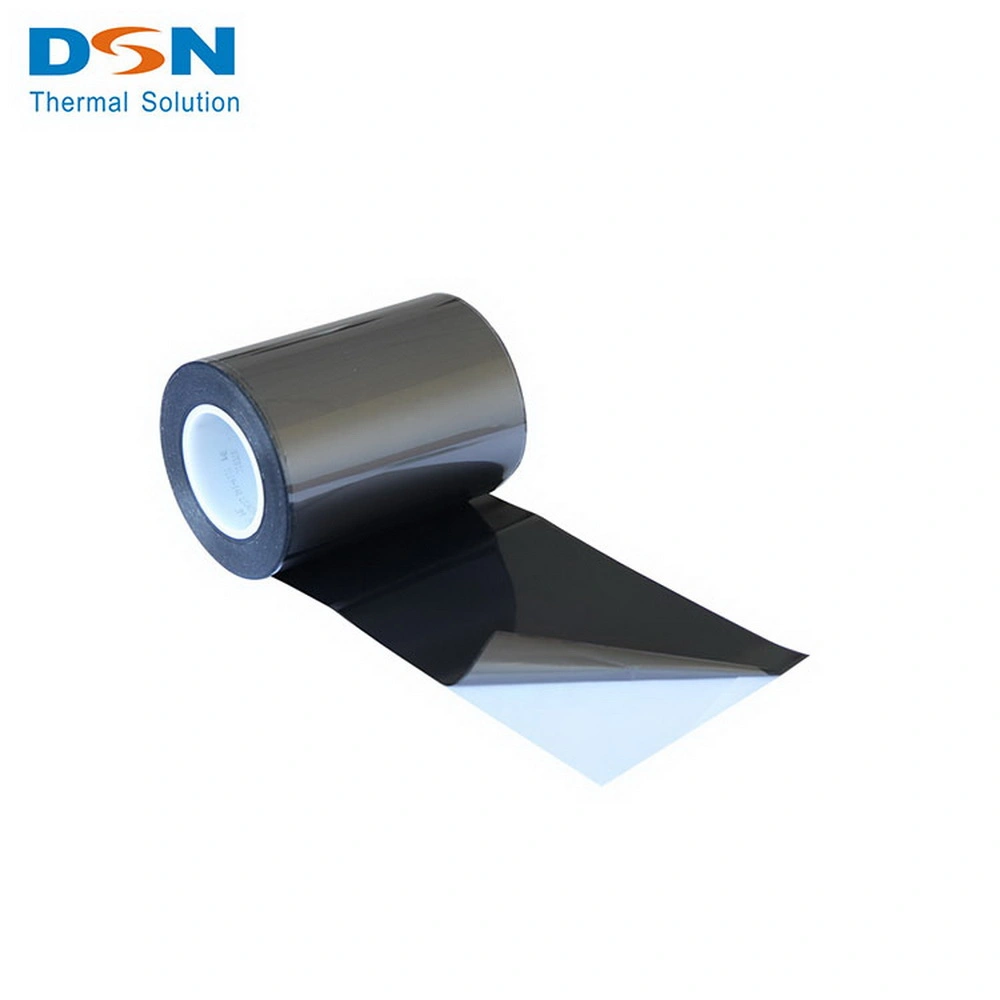

Synthetic graphite sheet, also called artificial graphite sheet, is a new film material made of Polyimide by sintering.

Synthetic graphite is available with an adhesive backing on one side, which can significantly improve the thermal resistance. A wide range of die-cut shapes & components are manufactured to customer specifications on request.



Low Thermal Resistance CPU Flexible Carbon Thermal Conductive Carbon Graphite Sheet

Parameters of synthetic graphite sheet - 1

Thickness (mm)DSN5012DSN5017DSN5025DSN5032DSN5040
0.012±0.0030.017±0.0030.025±0.0030.032±0.0040.04±0.005
Thermal conductivityX-Y axis 1700~19001700~19001700~18501500~17001300~1500
(W/m.K)
Z axis10~1510~1512~1812~1813~19
(W/m.K )
Density (g/cm3)2.15±0.12.12±0.12.1±0.12±0.11.9±0.1
  Hardness (shore A)8585858585
Tensile strength (psi) 650650650650650
Heat resistance400400400400400
 temperature (ºC)
Thermal resistance (ºC)0.15%0.15%0.15%0.15%0.15%
Electric conductivity (s/cm)1900019000190001900019000





Parameters of synthetic graphite sheet - 2



Thickness (mm)DSN5050DSN5070DSN5100DSN5150DSN5200
0.05±0.0050.07±0.0050.1±0.0080.15±0.0150.2±0.02
Thermal conductivityX-Y axis 1350~15501200~1400800~1000600~800500~700
(W/m.K)
Z axis15~2215~2215~2215~2215~22
(W/m.K)
Density (g/cm3)1.85±0.11.8±0.11.5±0.11.1±0.11±0.1
  Hardness(shore A)8585858585
Tensile strength (psi) 650650650650650
Heat resistance400400400400400
 temperature (ºC)
Thermal resistance (ºC)0.15%0.15%0.15%0.15%0.15%
Electric conductivity (s/cm)1900019000190001900019000





Features of synthetic graphite sheet:

* Excellent thermal conductivity: up to 1950 W/m•K

(2 to 5 times as high as copper, 3 to 8 time as high as aluminum)

* Lightweight: Specific gravity: 1.9 to 2.1 g/cm3

* Flexible and easy to be cut. (Withstands repeated bending)

* Low thermal resistance

* Low heat resistance with flexible graphite sheet

* Low repulsion and easy to keep the product's shape after attaching

* RoHS, REACH compliant





3. Production process of graphite sheet




Low Thermal Resistance CPU Flexible Carbon Thermal Conductive Carbon Graphite Sheet




4. Application

As electronics get faster, thinner and more powerful, the thermal challenges are more demanding than ever.

The graphite sheet with high thermal conductivity and light weight can provide the best thermal management solution. It is widely used in smartphones, PC, ultra HD TV, LED lamp, solar energy, battery, VR, new energy vehicles, wireless charging and other fields.


Low Thermal Resistance CPU Flexible Carbon Thermal Conductive Carbon Graphite Sheet




5. Quality control (STRICT QC SYSTEM)

* Quality policy - The policy aims at satisfying our customer by way of initializing an updated quality management and sticking to the top requirement of "quality first" in an attempt to achieve an elite project finally.

* Quality objective - Provide our customer with products in full line with relevant contract and standard by way of strictly conforming to quality control procedure and intensifying avoiding common quality faults to be sure of an effective operation of the quality assurance and quality control system, achieve a zero quality accident rate and realize good project construction quality.

* Quality Assurance System and Function - Establish quality assurance and effective quality control system before construction in order to ensure the realization of construction quality objective.

* Work - Post Responsibility - Responsibility of Project Manager

Low Thermal Resistance CPU Flexible Carbon Thermal Conductive Carbon Graphite Sheet



Low Thermal Resistance CPU Flexible Carbon Thermal Conductive Carbon Graphite Sheet







6. Experienced R&D team

Dasen has a research and development team with 2 ph. D. leading more than 20 high-end R & D technicians. Dasen also owns a sound management process and advanced development tools.





7. Certificates & patents

ISO9001-2015, ISO14001-2015, IATF16949-2016, UL

We obtained more than 30 invention patents and utility model patent and gained the honor: "scientific and technological innovation enterprises", "Jiangxi Province special new enterprises", "national high-tech enterprises".


Low Thermal Resistance CPU Flexible Carbon Thermal Conductive Carbon Graphite Sheet




8. Main customers & business culture


Low Thermal Resistance CPU Flexible Carbon Thermal Conductive Carbon Graphite Sheet




Main customers: SAMSUNG, AIRBUS, HUAWEI, HP, NVIDIA, PHILIPS, FOXCONN, LENOVO…



DSN adheres to Taiji culture of respecting social and loving people, fulfilling social responsibility, publicizing the environment and development, and realizing the common growth of society, enterprises and employees.


As Heaven's movement is ever vigorous, so must a gentleman ceaselessly strive along.
DSN will work hard to press ahead and create new splendor.




Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
