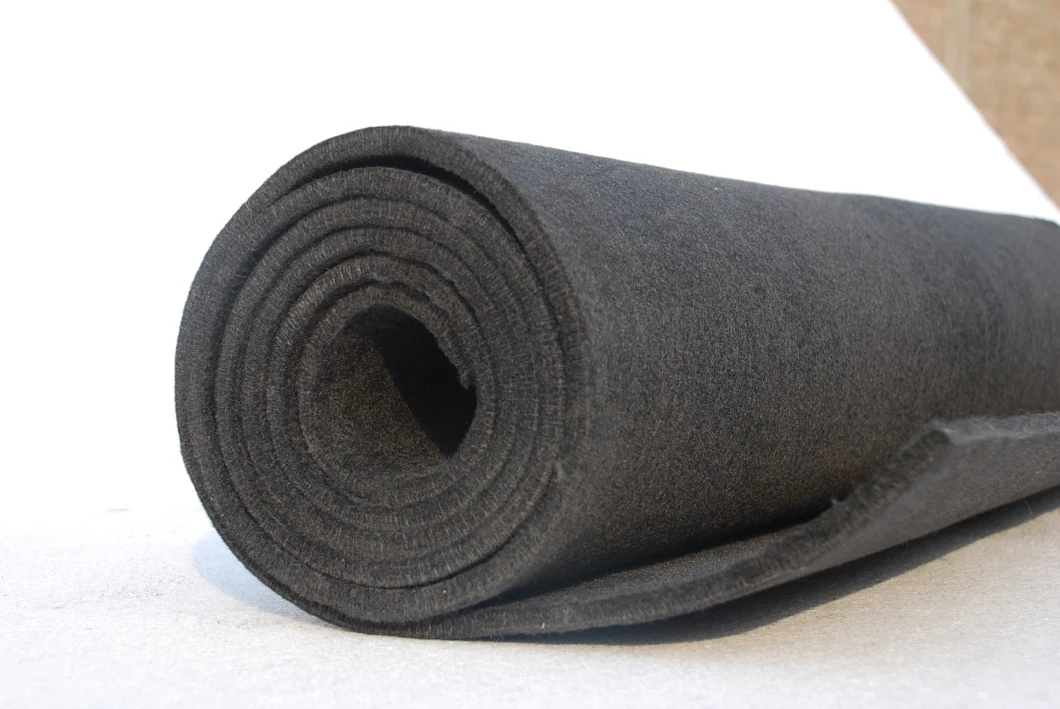

Pan Based Graphite Felt 3mm Thickness for Vanadium Redox Flow Battery

PAN Based Graphite Felt 3MM Thickness for Vanadium Redox Flow Batterygraphite felt:pan graphite felt.Feature:Low ash content / High carbon content / Low gas evolution Excellent heat insulation / Low thermal conductivityLong life time / Good anticorrosion / High oxidation resistance Easy Handling / Good Strength Ap

Featured Products

PAN Based Graphite Felt 3MM Thickness for Vanadium Redox Flow Battery
graphite felt:
pan graphite felt.
Feature:
Low ash content / High carbon content / Low gas evolution
Excellent heat insulation / Low thermal conductivity
Long life time / Good anticorrosion / High oxidation resistance
Easy Handling / Good Strength
Application:
Heat insulation materials
Electrical elements
Absorptive materials
Reinforcing structure for C/C composite components and other products .
Etc

Graphite/carbon felt
99-99-
ITEM
TrademarkPAN-based
Carbon Felt
JXA-12
PAN-based
Graphite Felt
JXA-13
MaterialPAN-CFPAN-CF
Bulk  density  g/cmPP30.140.13
Carbon  %≥98≥99
Thermal conductivity
1150PPoPPC W/m .k
0.12-0.160.12-0.16
Tensile Strength (Mpa)0.150.14
Crushing stress at 10% compression N/cmPP28-128-10
Ash  %≤0.05≤0.005
Processing temperature1200PoPC2300PoPC
Operating Conditionin the air≤400PoPC≤400PoPC
in the vacuum≥1500PoPC≥2300PoPC
In the inert atmosphere≥2300PoPC≥3300PoPC
Speclenght (m) 9-12
Wide (mm)1000-1300
Thickness (mm)3.5.8.10

Our company is the professional manufacturer and exporter for carbon and graphite  products. our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
 Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
 Carbon-graphite products for non-ferrous metallurgy and processing;
 Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry

We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
